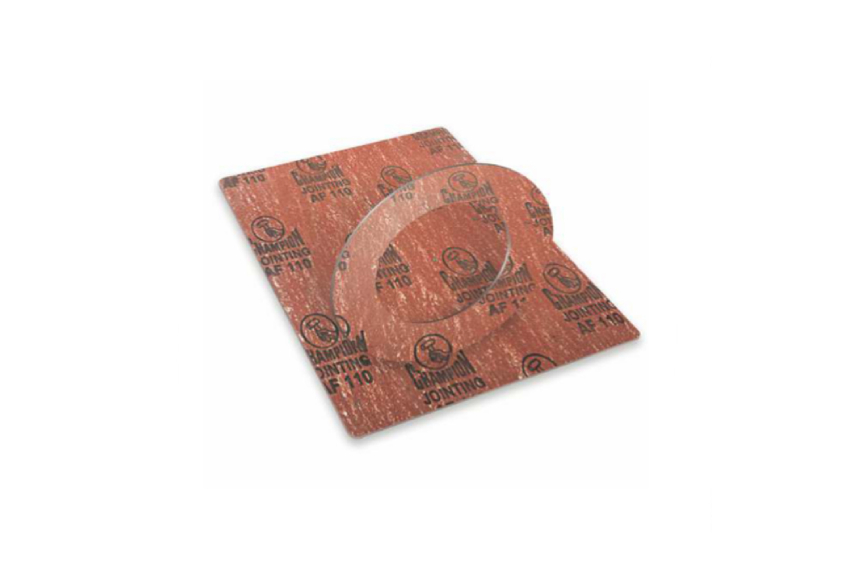

Asbestos Free (AF) Fibre Jointing Sheets
Champion Style is a high quality and reliable, yet, cost-effective product manufactured from eco-friendly natural cellulosic fibers bonded with suitable mix of elastomers.
Champion Sheets are available in non-metallic and also in metallic option (with wire reinforcement). This grade is produced in brown color.
Applications
Champion Jointing AF 110 Jointing for general purpose, medium performance duties.Preferred as gasket for liquid and gases in low internal pressure and temperature Suitable for flanges with low bolt loading conditions.
Service Media
Corrosive / non-corrosive gases, steam, condensate, water, air, oils, solvents and a wide range of other media (low service conditions).
How Supplied
Sheets, pre-cut gaskets, special density.thickness, shape or grade available on request.
Sheet Ordering Information
| Available Sheet Sizes in mm (+/- 5%) |
1600 mm x 1500 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 4500 mm | |
| 2000 mm X 6000 mm | |
| Thickness(mm) | 0.4/0.5 mm: 0.75/0.8 mm; 1.0 mm; 1.5 mm; 2.0 mm; 3.0 mm; 4.0 mm; 5.0 mm |
Typical Physical Properties
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 1.75 g/cm3 - 1.9 g/cm3 |
| Tensile Strength | ASTM F 152 | ≥7 MPa / 70 Bar (1015 psi) |
| Compressibility | ASTM F 36 | 8% - 13% |
| Residual Stress | BS 7531 | ≥22 MPa /220 Bar (3190 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥45% |
| Water Absorption | BS 7531 | ≤5% |
| Ignition Loss | DIN 52911 | ≤40% |
Fluid Resistance
| Weight Increase | ASTM Oil No.3 : 5hr/150°C(300°F) | <10% |
| ASTM Fuel B : 5hr/23°C(73.4°F) | <10% | |
| Thickness Increase | ASTM Oil No.3 : 5hr/150°C(300°F) | <10% |
| ASTM Fuel B : 5hr/23°C(73.4°F) | <10% |
