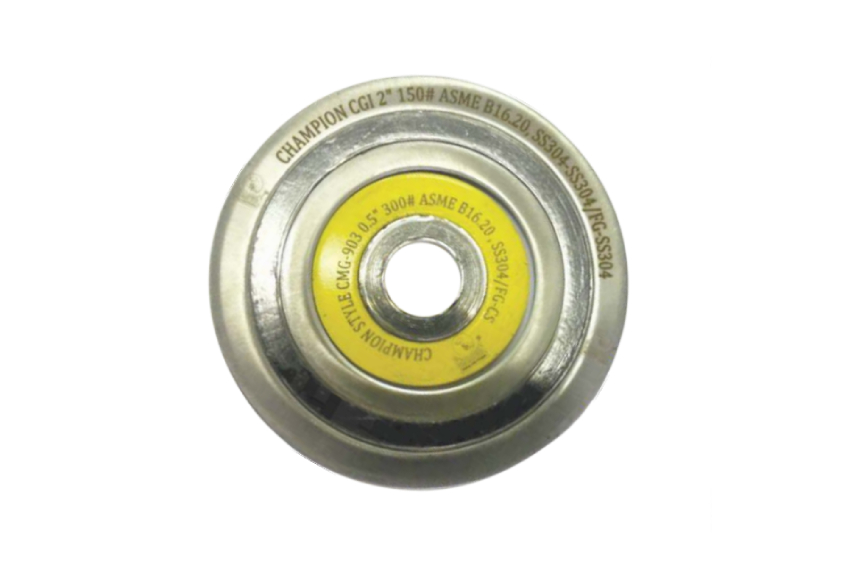

Spiral Wound Gaskets

CHAMPION SPIRAL WOUND METALLIC GASKETS consists of the basic sealing element combining several layers of pre-formed V-shaped metal strip which are spirally wound together under pressure with the soft- material filler (PTFE or expanded Graphite) to improve the mechanical strength and internal pressure. This gasket provides perfect sealing under fluctuating high pressure operating conditions (thermal Cycling) providing resilience and recovery.

Key Features

Available in a range of materials capable of withstanding high and low temperatures

Designed to seal high pressures

Maintains high tightness / low leakage under thermal transient conditions

Resists corrosion in aggressive media environments

Application Guidelines

High pressures and vacuum service

Piping flange gaskets, heat exchangers, vessels, boilers, reactors and OEM special equipment

Recommended for wide range of chemicals, HP steam, hydrocarbons

Suitable for standard ASME, EN, JIS, DIN, PN flanges

Available winding and ring materials

Carbon Steel	SS 321
SS 304	Monel 400
SS 316	Nickel 400
SS 316L	Inconel 400
SS 347	Alloy 20

CMG Sizes

Nominal Thickness	Compressed Thickness	Guide Ring Thickness
3.2 mm	2.4 - 2.6 mm	2.0 - 2.2 mm
4.5 mm	3.2 - 3.45 mm	3.0 - 3.2 mm
